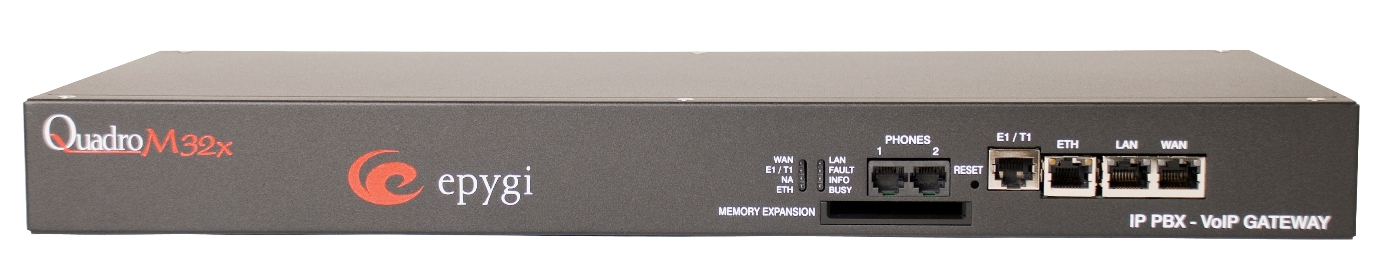

NEW - Quadro M32x

The Quadro M32x IP PBX is ideal for the medium to large businesses with the larger need for IP phone ports and SIP type trunks.  The Quadro M32x IP PBX comes with a IP router, SIP Gateway and IP PBX in one package.  Two FXS phone ports for connection of standard analog POTS telephones or fax machines are equipped. The Quadro M32x IP PBX supports up to 192 total IP phone ports that can be local extensions. New with the Quadro M32x IP PBX is the built-in E1/T1 port for connection to the PSTN or legacy phone switches.  With a built-in QoS router, your LAN and voice traffic can be routed to the Internet (or VPN), eliminating the need for an additional IP router. The Quadro M32x IP PBX incorporates a stateful inspection firewall, NAT, DHCP client and server, VPN, and web browser for configuration. In addition, the Quadro M32x IP PBX has voicemail, T.38 fax support, and IPSec VPN. The standard capacity of the Quadro M32X IP PBX supports 32 IP phone ports and 2 FXS phone ports.  License keys in groups of 32 and 64 IP phone ports can be incrementally purchased to expand the Quadro M32X IP PBX  to a maximum of 192 IP phone ports and 2 FXS analog ports.

Click here for QuadroM 32x datasheet...

  Quadro 2x

The Quadro 2x small business IP PBX is ideal for the telecommuter, SOHO or the small business office. The Quadro 2x IP PBX is equipped with an IP router, SIP gateway and IP PBX all in one package. Two FXS ports for connection of standard analog POTS phones or fax machines are provided. 8 additional SIP IP phone ports can be configured as local extensions. In addition, there is one FXO port for connection to the PSTN or legacy PBX. With a built-in QoS router, your LAN and voice traffic can be routed to the Internet (or VPN), eliminating the need for an additional IP router.

The Quadro 2x IP PBX incorporates a stateful inspection firewall, NAT, DHCP client and server, VPN, and web browser for configuration. In addition, the Quadro2x has voicemail, T.38 fax support, and IPSec VPN. With the purchase of a license key, the Quadro 2x can expand to support 8 more IP phone extensions, bringing the combined total to 18 analog and IP extensions.

 [Click here for Quadro 2x data sheet]

Quadro 4x

The Quadro 4x IP PBX is the next step for the small or SMB business or branch office. It is an IP router, SIP gateway and IP PBX all in one package. The Quadro 4x is equipped with four FXS ports for connection of standard analog POTS phones or fax machines. 30 additional SIP IP phones can be configured as local extensions. In addition, there are two FXO ports for connection to the PSTN or legacy PBX. With a built-in QoS router, your LAN and voice traffic can be routed to the Internet (or VPN), eliminating the need for an additional IP router. The Quadro4x incorporates a stateful inspection firewall, NAT, DHCP client and server, VPN, and web browser configuration.

In addition to the features of the Quadro 2x, the Quadro 4x IP PBX adds hunt grouping, and a USB port for voicemail memory expansion. With the purchase of license keys, the Quadro 4x can expand to support 32 more IP phone extensions, bringing the combined total to 66 analog and IP extensions.

 [Click here for Quadro 4x data sheet]

The Quadro 6L IP PBX is the latest product offering for the small and SMB business which require Key System telephone features.  It is an IP router, SIP gateway and IP PBX all in one box.  10 SIP IP Phone ports can be configured as local extensions.  In addition, there are six FXO ports for connection to the PSTN.  With a built-in QoS router, LAN and voice traffic can be routed to the INTERNET, eliminating the need for an additional IP router.  The Quadro 6L IP PBX incorporates a stateful inspection firewall, NAT, DHCP client and server, IPSec VPN, and web browser configuration.  Key System emulation is a new feature to determine the right fit for this product.  Shared Line appearance and a few other Key System features were added to the already powerful Version 4 series feature set to create the Quadro 6L IP PBX

Quadro 16x

The Quadro 16x IP PBX is destined for the small and SMB business. Like its smaller companion IP PBXs, it is an IP router, SIP gateway and IP PBX all in one package. The Quadro 16x is equipped with sixteen FXS ports for connection of standard analog POTS phones or fax machines. 18 additional SIP IP phone ports can be configured as local extensions. In addition, there are four FXO ports for connection to the PSTN or legacy PBX. With a built-in QoS router, your LAN and voice traffic can be routed to the Internet (or VPN), eliminating the need for an additional IP router

In addition to the features of the 2x and 4x, the Quadro 16x adds hunt grouping, and a USB port for voicemail memory expansion. With the purchase of license keys, the Quadro 16x can expand to support 32 more IP phone extensions, bringing the total to 66 analog and IP extensions.

 [Click here for Quadro 16x data sheet]
